CV-400



 Price
Blog

   Feature





  • 10” X 54” Tablesp-150vs

  • Variable speed, 3HP, 3 Phase, 220/440V

  • R8 or NST#30 Spindle material SAE4115(SCM415) full piece by hardened & ground

  • Turcite-B On XY ways, slideways & Gibs

  • Hardened & Ground X&Y Slideways and table

  • 32mm Precision ground Ball screws on XY

  • Grinding on Ram & column slideways

  • Grinding on table T-slot

  • Hardened & ground on Quill

  • Leveling Screw & Plate On Base.

  • Strict Required Scraping with High Precise Accuracy.

  • Tool box & Tools

  • Rubber chip cover (front & rear )

  • Auto Lubrication system

  • Quartz work light included

  • Machine made in Taiwan complete

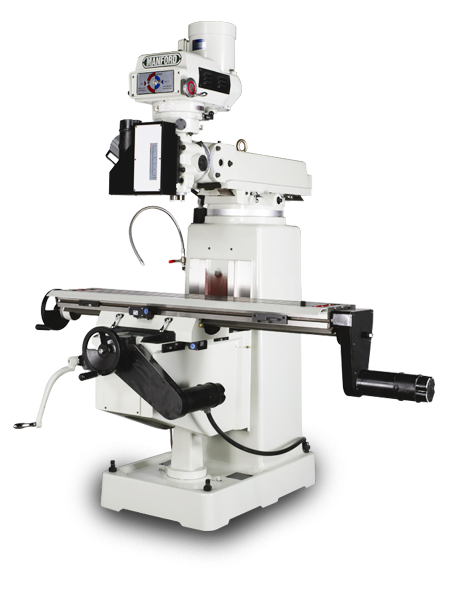

        Note: picture shows machine with Anilam 3300 control.

                  Other controls are also available.



  Specification




      TABLE
　　Table  size 10” x 54” (250 X1370mm)
　　T slot of spindle ( Qty  X  Size ) 3x ⅝” (3 x 15.87mm)
       Longitudinal travel 32⅝” (830mm)
       Cross travel  15” (380mm)
       Travel of knee 14” (355mm)
       Travel of Z axis (Quill): 4.5” (114mm)
       Table to spindle nose 5⅞” ~9-7/8”0¾” (150-505mm)
      SPINDLE
　　Spindle taper R8 (NST#30 option)
       Spindle speed (RPM) - Variable speed head (60Hz) 60-4500
　　Ram travel 22” ( 560 mm)
　　Over swivel on turret 360º
       Longitudinal/cross feed rate: 0 – 120 in/min
　　Quill feeds  (mm/rpm) 0.0015" ~ 0. 003" ~ 0.006"
　　Swiveling angle and head (R & L)  +45º
　　Head tilt (up & down) +45º
　　Spindle to column (E)

6-1/4” – 28-1/4”(159mm-719mm)
      MOTOR
　　Spindle motor  3 HP,3 Phase, 220/440V
      MACHINE SIZE
　　Overall height  83-1/2” (2120mm)
　　Overall depth 72-7/8” (1850mm)
　　Overall width * 74-3/4” (1900mm)
　　Net weight

3080 lbs. (1400kgs)









Standard Accessory   CNC Control System (Adaptable)
      Hardware limit/homing switches for XY axes     Anilam
      Auto lubrication pump     Mitsubishi
      Quartz work light     Fanuc
      Rubber chip cover( front & rear )
      Tool box with tools

Optional Accessory
     EVS head, 3HP inverter motor with Yaskawa driver 60-5000rpm
     Align AL-500 power feed for Z
     Digital readout system
     Air power drawbar
     Coolant system (1/8 HP,3PH,220V )
     Coolant tray (Base)
     6” Angle-fixed milling vise with swivel base
     Clamping kit (52 pcs)







All Specifications And Designs Are Subject To Change Without Notice.
